PTFE Diaphragms
PTFE Diaphragms – Precision, Purity & Performance
Polytetrafluoroethylene (PTFE) is a high-performance fluoropolymer known for its exceptional chemical inertness, thermal stability, and low-friction surface. Its unique molecular structure makes it one of the most reliable materials for applications involving aggressive media, extreme temperatures, and demanding process environments.
When molded into a diaphragm, PTFE offers superior durability and resistance compared to conventional elastomers. It withstands corrosive acids, solvents, high-purity fluids, and wide temperature variations without degradation, making PTFE diaphragms the preferred choice for critical processing industries.
At Arvico, we engineer PTFE diaphragms to deliver long-lasting, leak-proof performance in demanding pumping and dosing systems. Each diaphragm is rigorously tested to endure up to 5 million cycles, ensuring extended service life with minimal maintenance and maximum reliability.
Key Features & Benefits
Chemical Resistance
PTFE’s unmatched inertness protects against aggressive acids, solvents, and corrosive media, ensuring dependable performance in the harshest chemical environments.
Long Cycle Life
Our diaphragms deliver millions of flex cycles without cracking or fatigue, guaranteeing reliability in continuous-duty operations.
Extreme Temperature Stability
Arvico PTFE diaphragms retain flexibility, strength, and sealing integrity across wide temperature variations.
Precision-Engineered for Your Application
Custom-built using in-house tooling and stringent quality processes, each diaphragm delivers a perfect fit and consistent, long-lasting performance.
Technical Specifications
| Property | Details |
|---|---|
| Material Options | Virgin PTFE for maximum purity and chemical resistance Modified PTFE for enhanced flexibility and sealing |
| Shore Hardness | 50-60 Shore D |
| Temperature Range | -80°C to +260°C |
| Elongation | 450% |
| Density | 2.16 g/cm³ |
| Tensile Strength | Up to 31 MPa (depending on the material grade) |
| Size | ½’’ to 3’’ Pump Diaphragms |
Other PTFE Components
Arvico manufactures a wide range of precision-engineered PTFE components built to perform in the harshest chemical, thermal, and mechanical environments. Designed for industries that demand reliability under extreme conditions, our PTFE parts offer exceptional purity, long service life, and consistent sealing performance.

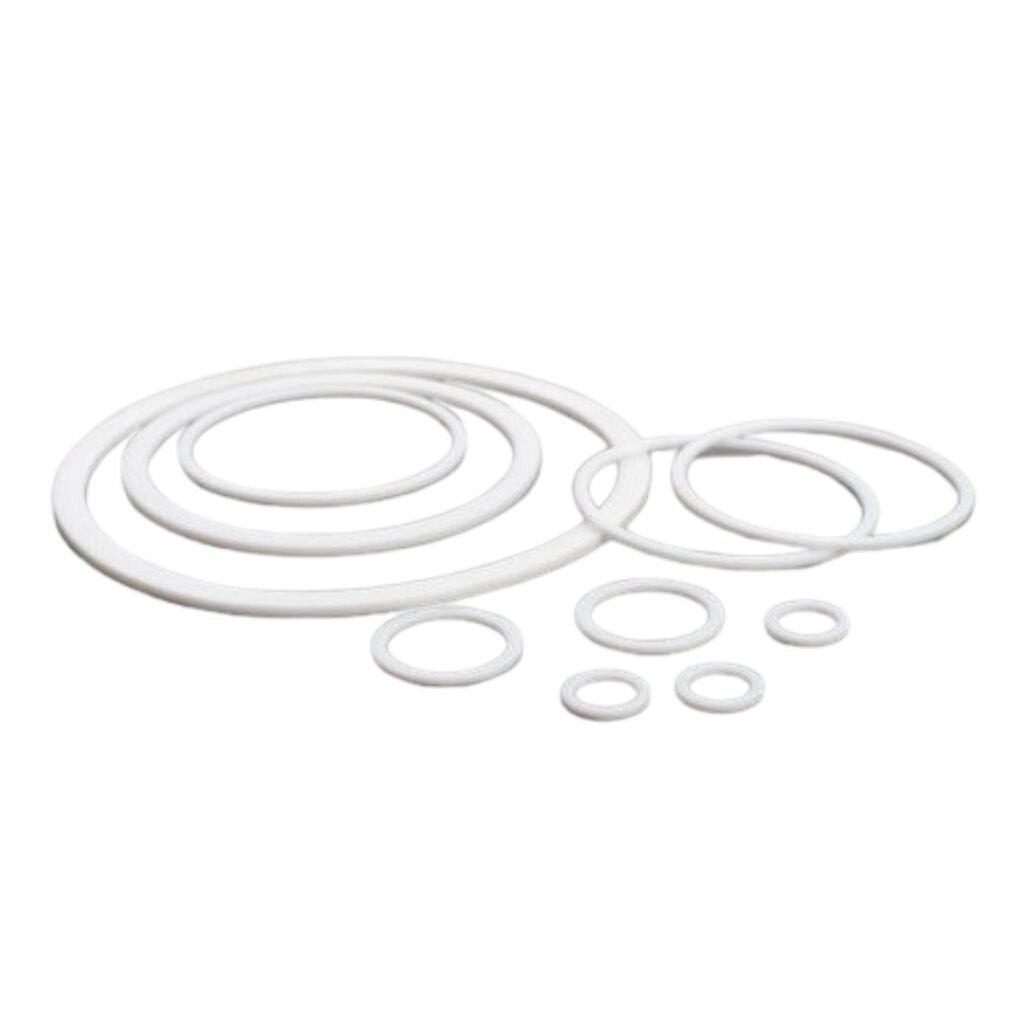

PTFE O-Rings
High-temperature, chemical-resistant seals for pumps, valves, and demanding process systems.

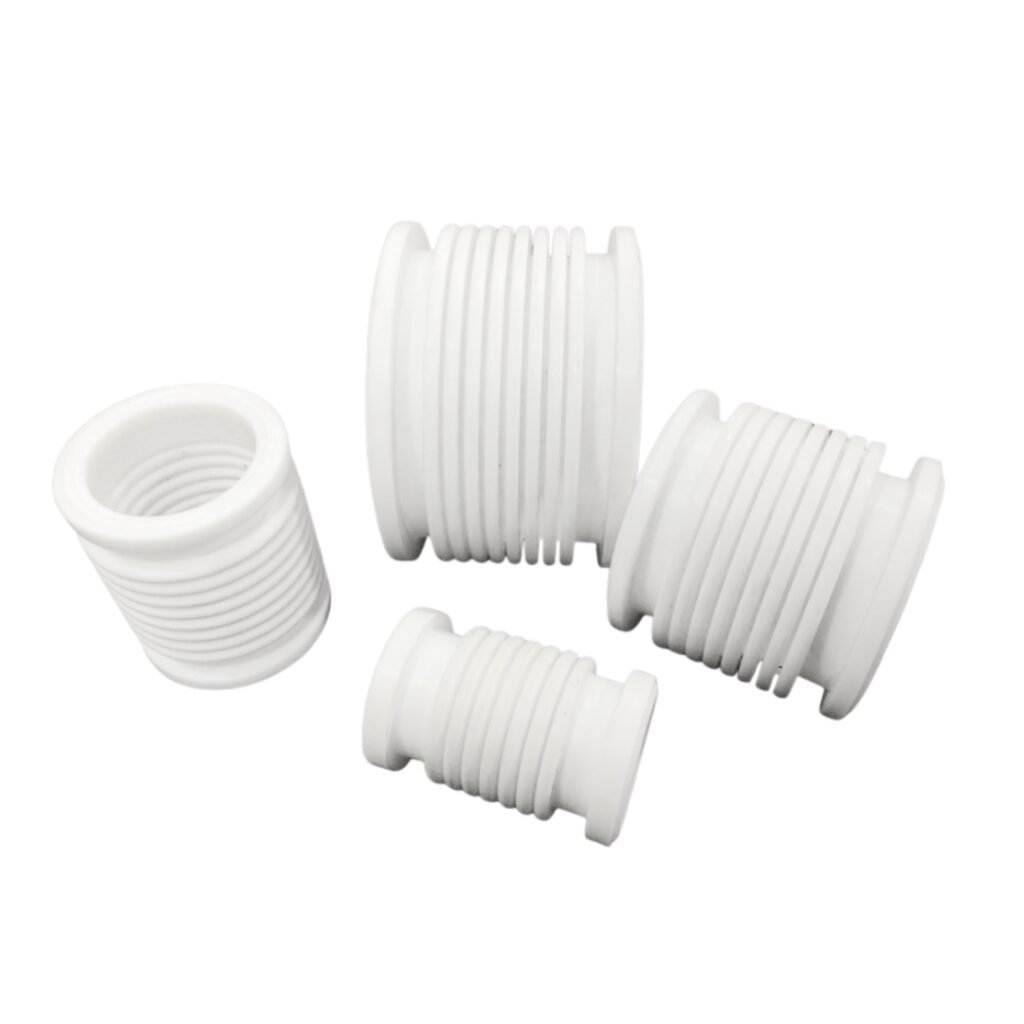

PTFE Bellows
Flexible, corrosion-resistant bellows that absorb vibration, movement, and thermal expansion.
PTFE Rods
Machinable, high-strength rods ideal for custom components requiring heat and chemical resistance.

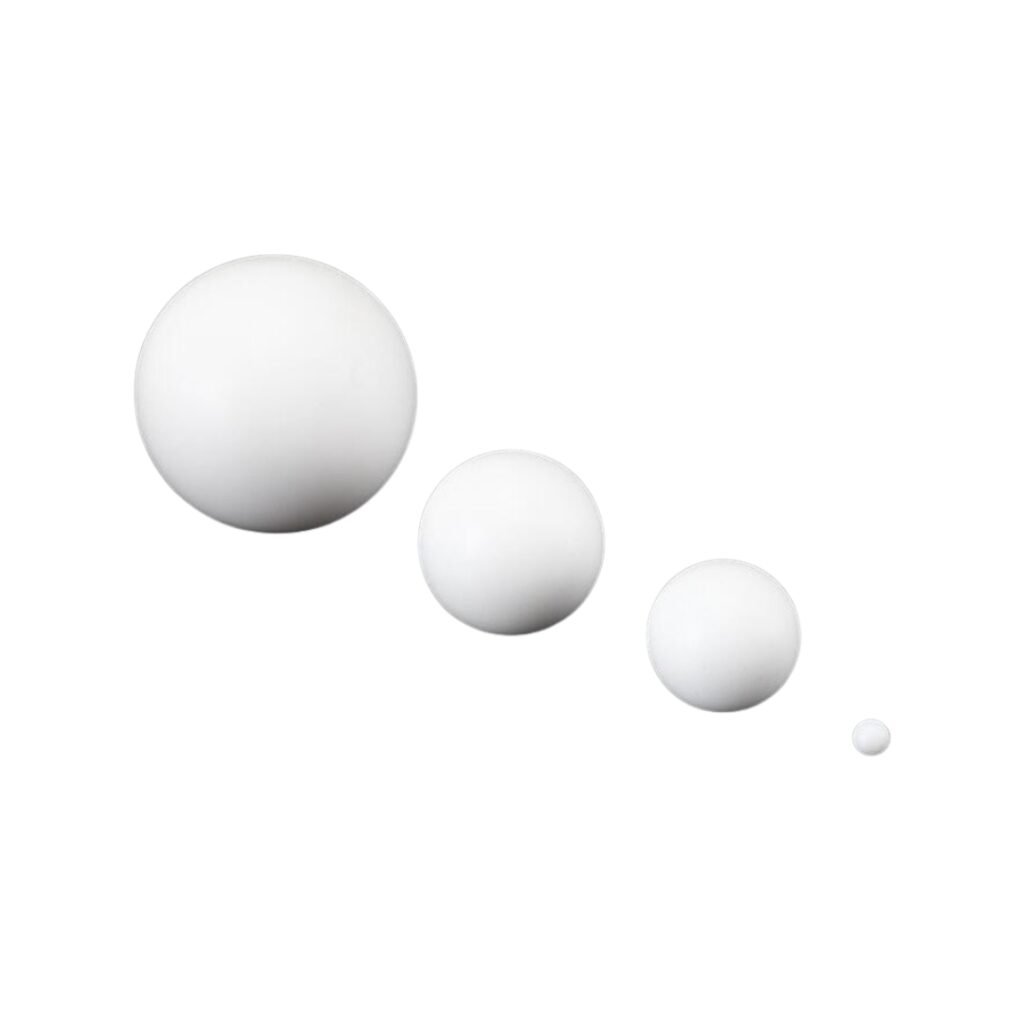

PTFE Balls
Ultra-low-friction precision balls for ball valves, metering systems, and flow-control equipment.

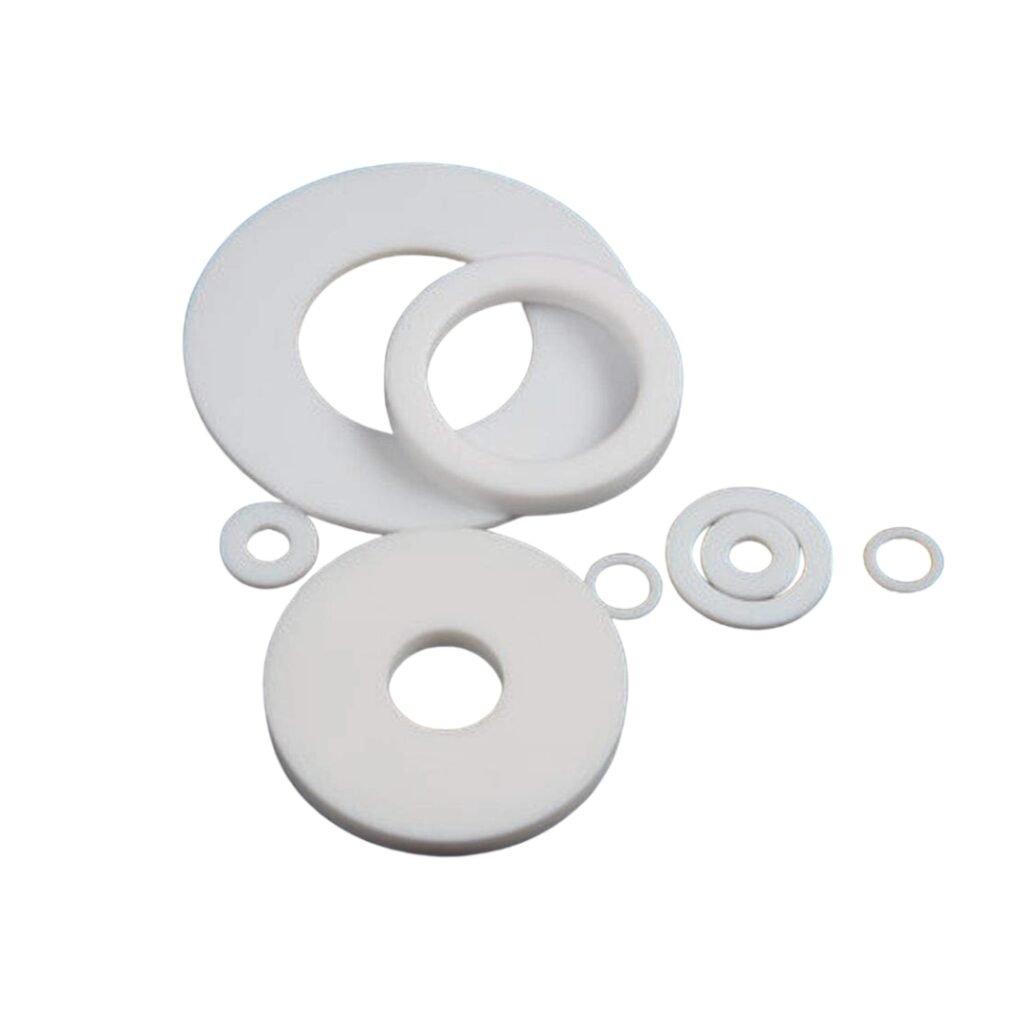

PTFE Washers
Durable, non-reactive washers for sealing, insulation, and friction reduction in harsh environments.

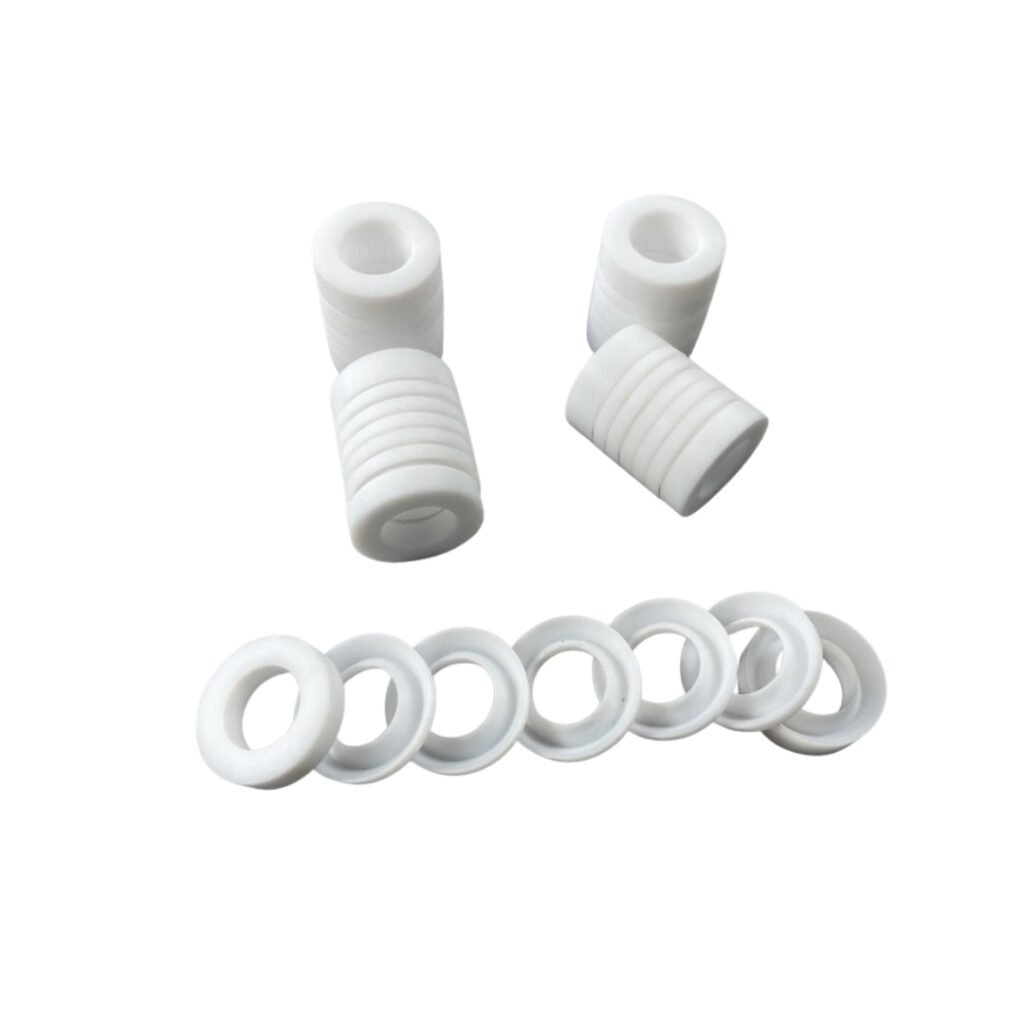

PTFE Chevron Set (V-Packings)
Multi-lip PTFE seals designed for high-pressure, dynamic motion in pumps and hydraulic systems.
Balls
Washers
Bellows
Chevron Set

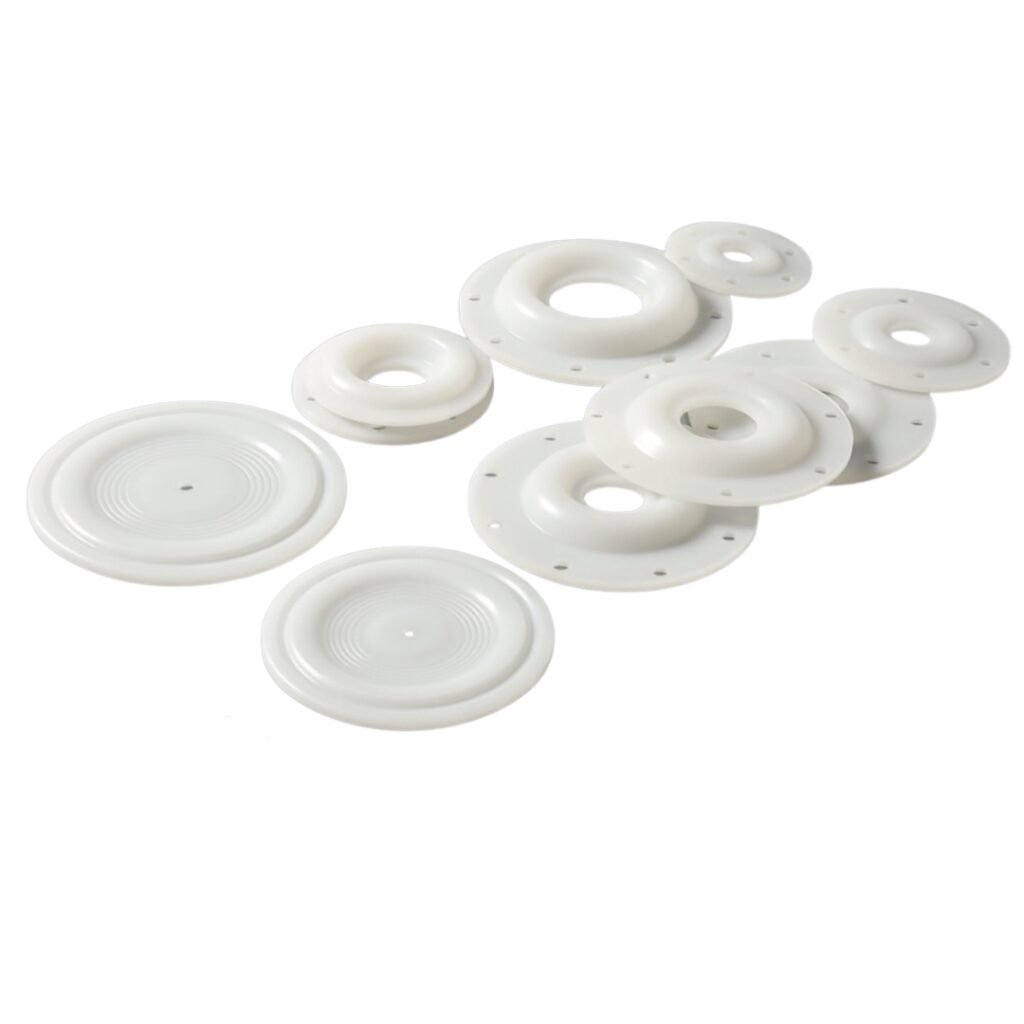

Diaphragms
O-Rings
Rods
Why Choose Arvico?
Standard PTFE components can fall short in demanding applications. Arvico bridges that gap with precision-engineered PTFE solutions designed to meet exact technical, dimensional, and performance needs.
Consistent quality and tight tolerances across large-volume production.
In-house design, tooling, and machining ensure quicker deliveries for urgent requirements.
Tailored in size, geometry, material grade, and hardness for a perfect fit and performance.
Let’s Find the Right PTFE Solution Together
Looking for high-performance PTFE components built to last? Our team at Arvico Rubber is ready to help you identify, customize, and deliver the perfect solution for your application.
Technical Insights
PTFE diaphragms combine chemical resistance and sealing performance for demanding applications involving aggressive process media.
PTFE offers excellent resistance to corrosive chemicals, reducing degradation and extending diaphragm service life.
PTFE diaphragms perform reliably across a wide temperature range encountered in industrial processing environments.
PTFE bonded diaphragms combine chemical resistance with elastomer flexibility and improved sealing performance.
Yes, PTFE diaphragms can be manufactured according to customer specifications and application requirements.
PTFE diaphragms are widely used in chemical processing, pharmaceuticals, water treatment, and industrial fluid control systems.
Yes, reinforced PTFE diaphragm designs are available for demanding pressure and performance requirements.
Provide dimensions, media type, pressure, temperature, cycle frequency, and installation details for accurate selection.
